Asahi Seiko

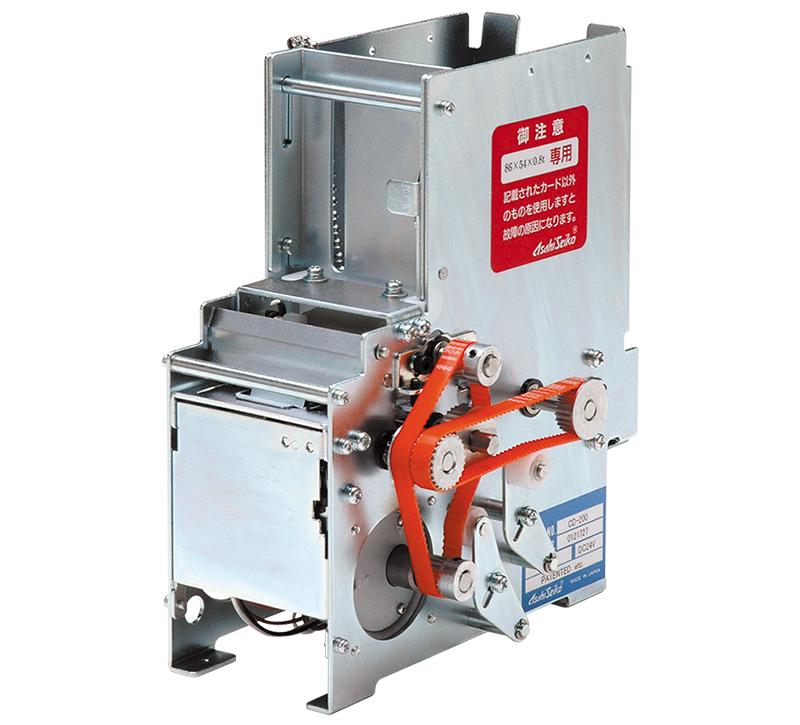

DESIGNED WITH A NEW CLUTCH AND REVERSE ROLLER, THE CD-200 PREVENTS THE DISPENSING OF 2 CARDS CONTINUOUSLY OR 2 CARDS STUCK TOGETHER.

Features

With the introduction of the new clutch method, double dispensing is prevented. In addition, dispensing of two sheets stuck together is prevented by the use of the reverse roller. This combination promises a stable card dispensing capability without error. The CD-200 can be utilized widely for various card dispensing applications.

Beneath the base, this model is equipped with an exclusive electronic control board for easy circuit operations. If the card feeding interval is too long (above 4 seconds), the reverse roller circuit will automatically operates and repeat the operation again. The number of times the operation is repeated can be selected with the dip switches.

From 0.15mm(min.) to 0.76mm(max.) in thickness. Please indicate the thickness of card when placing an order.

Other Models

Model CD-200/12V

The model CD-200 is available also with 12VDC motor specifications.
